U1series Brief description

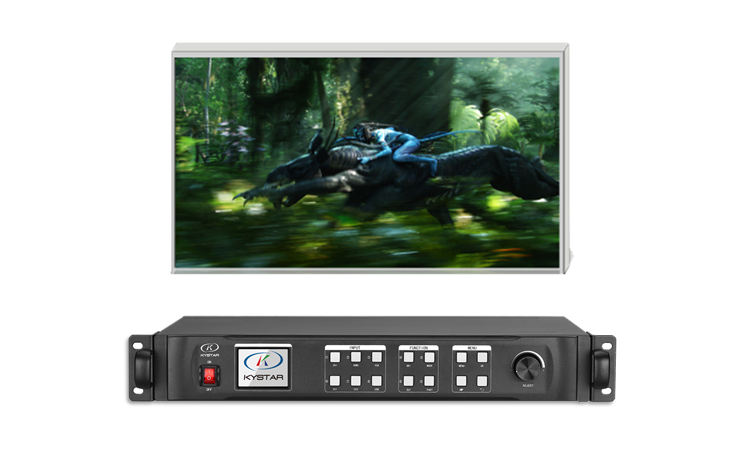

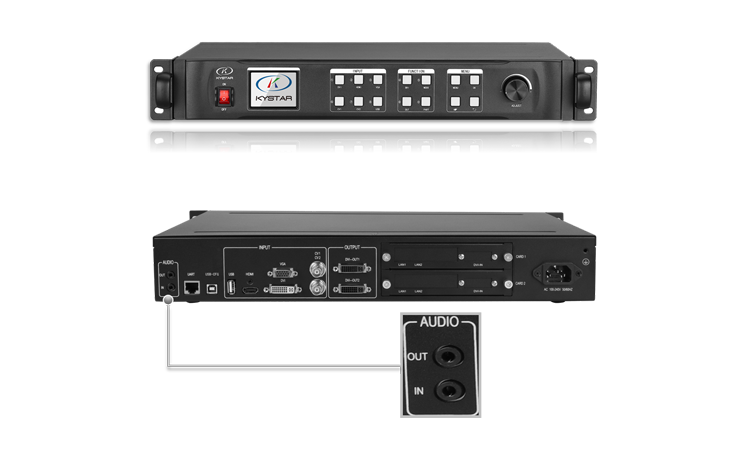

01U1A add 4 audio input and 1 audio output
U1S add 1 audio input and 1 audio output，1 SDI input
Exquisite design
02Change U1 support 6-channel HD/SD signal，including DVI*1，VGA*1,HDMI*1，CVBS*1，USB*1,SDI*1.
Fade in/out switch effects
03Making signal switch
Support fade in/out effects, eliminate black burst, blue screen etc. ,
which covering all the signal switches between external signal and internal decoding signal.
Free zoom in/out display
04Support fade in/out effects, eliminate black burst, blue screen etc.，
which covering all the signal switches between external signal and internal decoding signal.
Swift operation
05Wizard setting

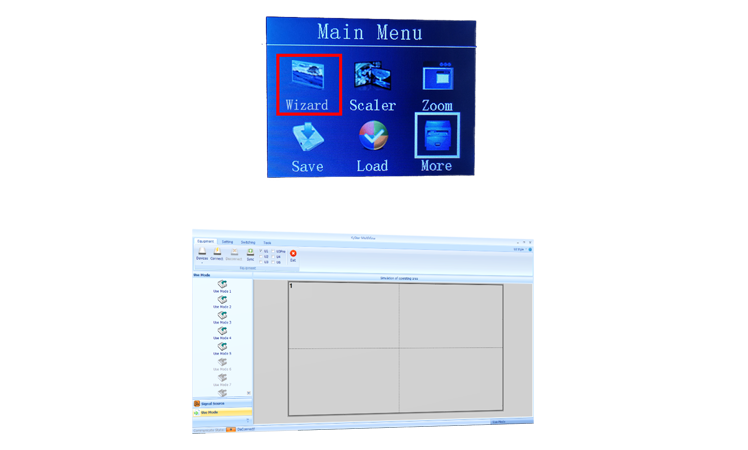

U1 provides wizard setting. Users make choice accordingly to complete machine setup by following the hint in the color LCD panel.
Software and offline scheduled task
U1 is perfect compatible with KYSTAR control software by connecting RS232 serial port to PC.
Device can be preseted by users to complete signal switch, brightness variations etc.at the appointed time by the software.
Deinterlacing SDI signal optional
06HD camera input signal

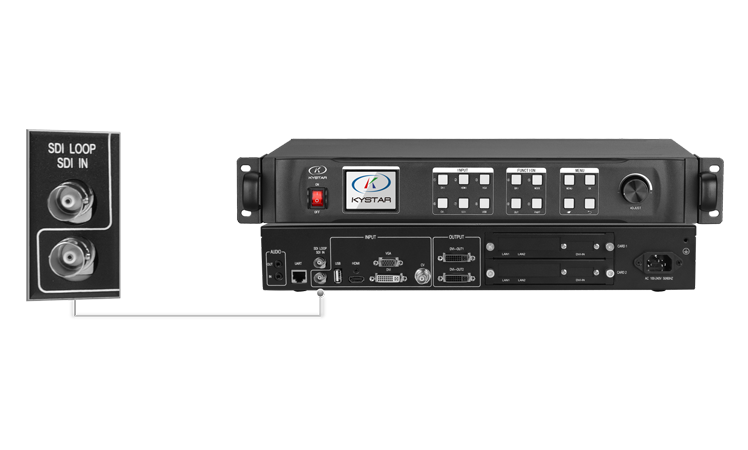

U1S support deinterlacing SDI input port, including SDI input and SDI loop port. The configured SDI input port supports HD signal input and deinterlacing.
|
视频输入信号 |
||||
|
类型 |
数量 |
说 明 |
||
|
DVI-D（24+1） |
1 |
·最大支持分辨率为1920×1200@60Hz，向下兼容 ·兼容HDMI1.3及以下版本，EDID版本1.3 |
||
|
HDMI(TYPE A) |
1 |
·最大支持分辨率为1920×1200@60Hz，向下兼容 ·兼容HDMI1.3及以下版本，EDID版本1.3 |
||
|
VGA (HD-15) |
1 |
·最大支持分辨率为）1920×1200@60Hz ，向下兼容 ·EDID版本1.3 .信号电平：R、G、B、Hsync、Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75Ω；black level：300mV Sync-tip：0V |
||
|
复合视频（BNC） |
2 |
·NTSC/PAL自适应 信号电平：1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω |
||
|
视频输出信号 |
||||
|
类型 |
数量 |
说 明 |
||
|
DVI-D（24+1） |
2 |
·最大支持分辨率为1920×1300@60Hz，向下兼容 ·兼容HDMI1.3及以下版本，EDID版本1.3 .支持自定义分辨率，例如1536×1536@60Hz,1200×1800@60Hz |
||
|
控制接口 |
||||
|
类型 |
数量 |
说 明 |
||
|
RS232（RJ 11） |
1 |
.波特率9600，随机附送RJ 11转RS232连接线 |
||
|
产品特色 |
||||
|
淡入淡出切换 |
.所有通道信号均支持淡入淡出切换 |
|||
|
人性化交互界面 |
.KS600配备了彩色液晶面板、数字按键及调节旋钮，并支持导航式设置 |
|||
|
计划任务 |
·通过KYSTR管理软件，用户可设定定时操作，完成自动化管理 |
|||
|
USB |
·支持USB接口升级 |
|||
|
其他 |
||||
|
上位机控制方式 |
RS232/USB |
尺寸(mm) |
66(高)×432(长)×225(深) |
|
|
重量(Kg) |
3.5 |
输入电源 |
100-240VAC，47-63Hz，≤2A |
|
|
工作环境 |
温度0-40℃；湿度0-95% |
保修期 |
2年免费维修，终身维护 |
|
