U2

01
  • Splicing outputs with resolution up to 2560×1536@60Hz
  • Support user-define output resolutions 2.6million
  • Multi-machine Synchronous Cascade

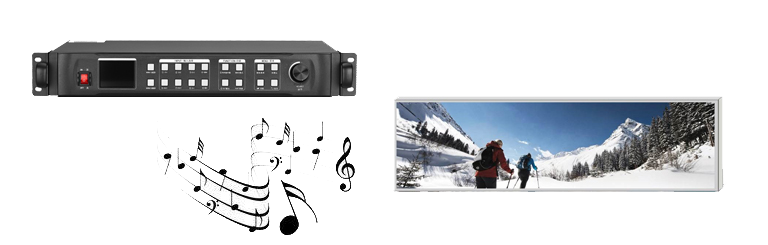

  • Support synchronous transition of audio and video
  • Fade-in and fade-out transition between any signals
  • Two-channel output, able to complete PIP and POP display
  • Support 1080P full-screen monitoring output
  • 2pcs LED sending cards built-in ability
  • Gathering usage records and Engineering lock
  • Navigational settings, easy to be used without training







Professional Configurations

02

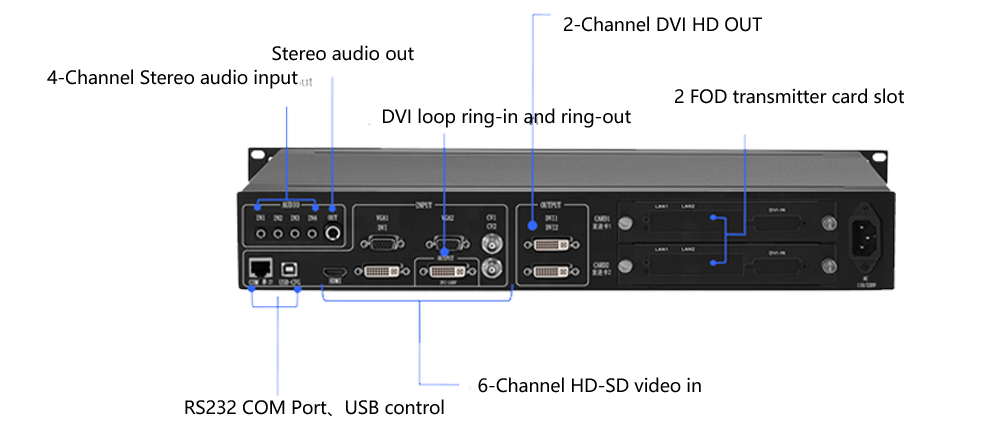

Professional AV Ports

Standard U2 has 6-channel video input:HDMI×1DVI×1 VGA×2CVBS×2DVI loop×1

In particular, U2 is equipped with 4-channel stereo input and 1-channel audio (The video signals can be specified for synchronous switching).

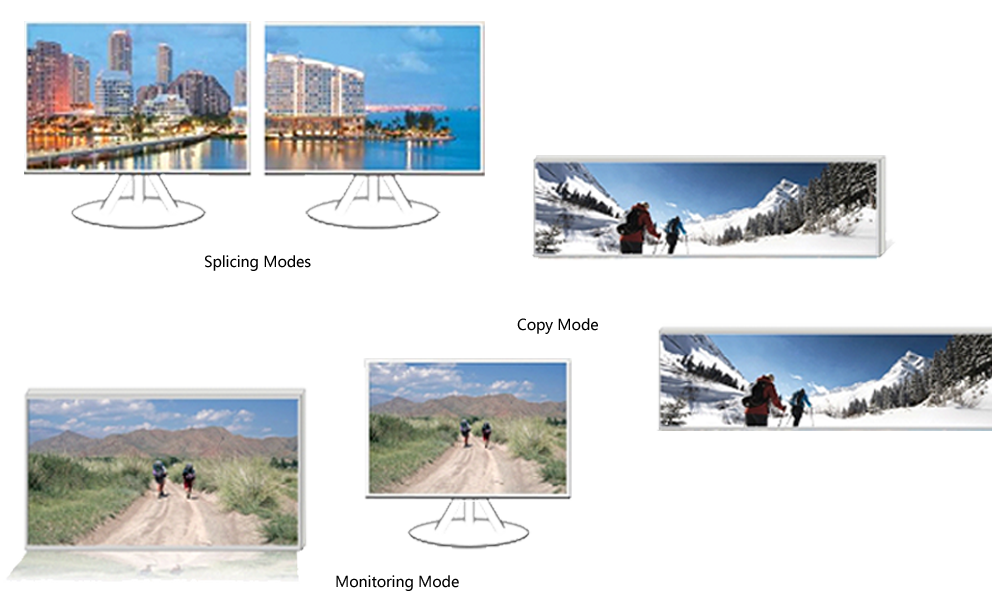

Three Output Modes

03

Splicing Modes

The two outputs of U2 output different parts respectively to form a complete picture and realize seamless splicing on the LED diplay, able to support the maximum 2560×1536 resolution.
Copy Mode

The two output ports of U2 output uniform picture. It is easy to drive two identical screens. When driving a single screen, it can also be relatively easy to connect the sending cards.

In this mode,it Support user-define output resolutions 2.6million.
Monitoring Mode
The two output ports of U2 output uniform signal.One acts as a programming output to drive the LED display while the other one keeps the original image to drive the local monitor,at the same time.













PBP Display

04

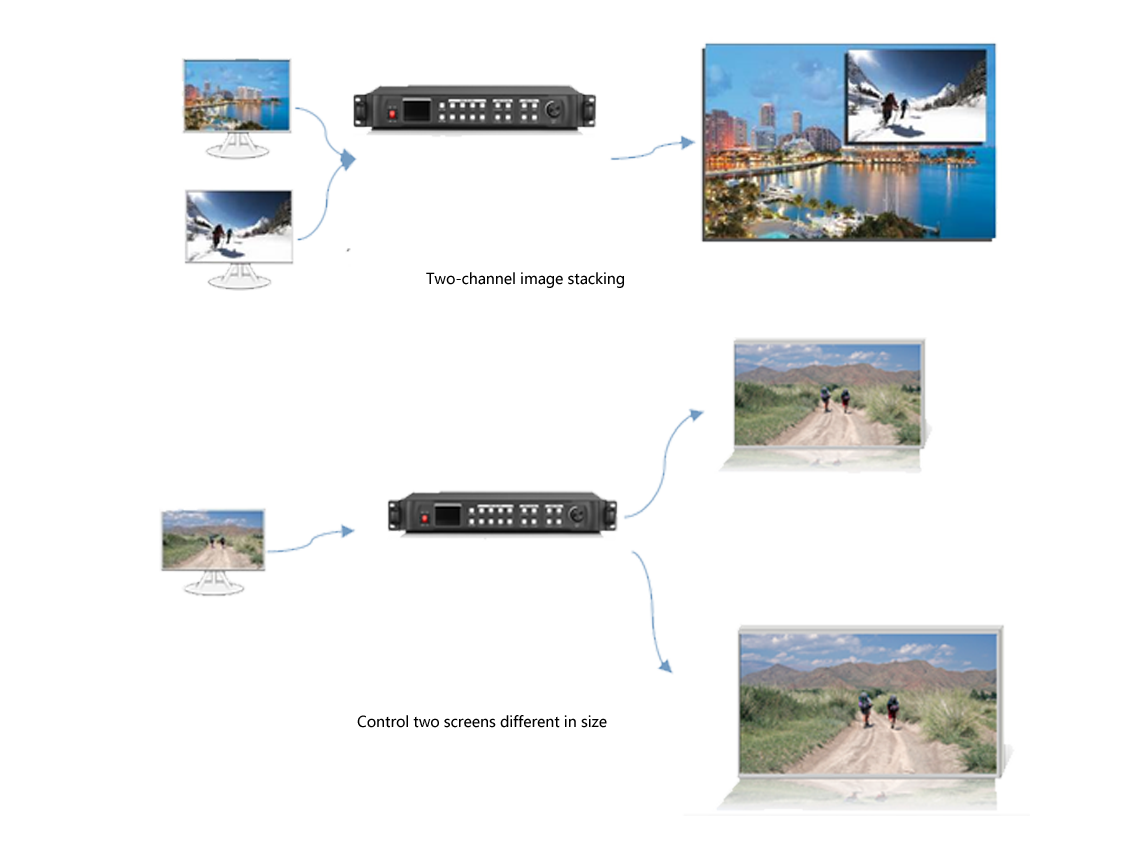

PBP Display
U2 can support PBP to achieve PIP and POP display or can be used to control two screens different in size.













High-Performance Iamge Processing

05

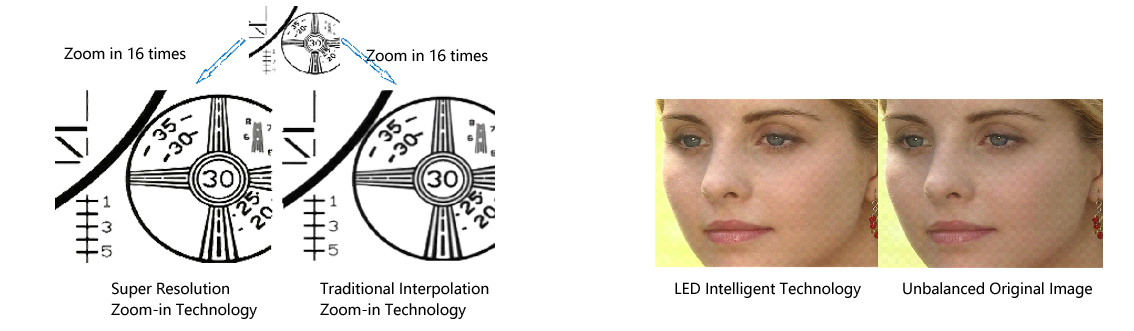

Super Resolution and LED Intelligent Balancing

U2 can support Super Resolution zoom technology, able to zoom in/out images by any size and simultaneously enhance the image details. In addition, the LED intelligent balancing technology can bring better color performance for the LED display system.

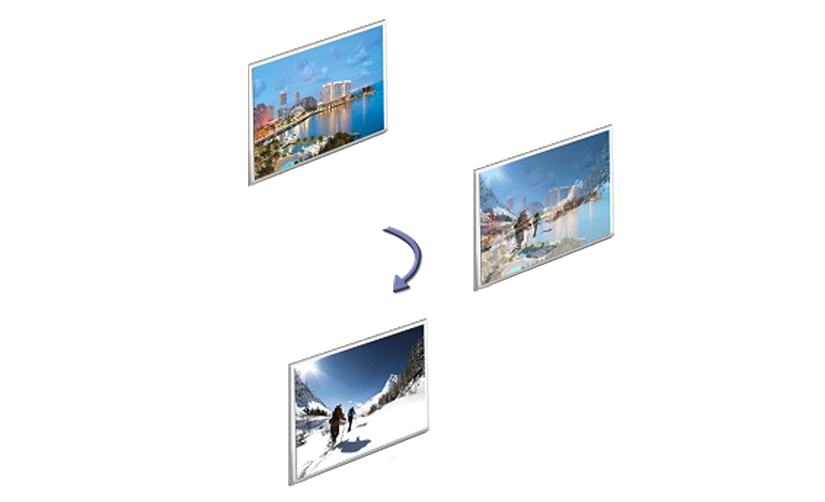

Fade-in and fade-out transition

06

All input signals of U2 can support fade-in and fade-out transition.





Special function

07

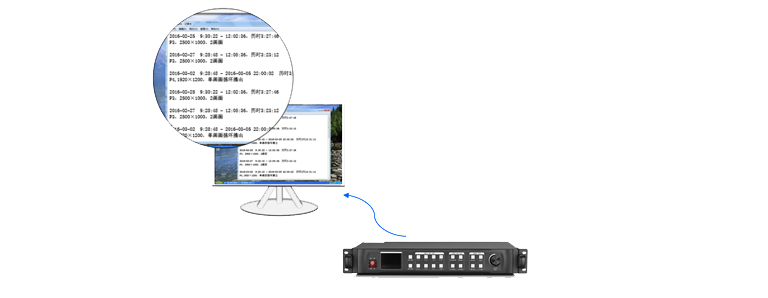

Gathering usage records

Using this function , You can know the use condition of machine any time.

Engineering lock

U2 Support engineering lock function, and could set working hours. After the scheduled time is reached, it is required to enter the unlock code to use.

In use time, if failed to unlock timely, the device will be locked, and no other operations could be conducted except entering unlock code. The device has no output during locking process.

输入信号

类型

数量



DVI-D(24+1)

1

·最大支持分辨率为1920×1200@60Hz,向下兼容

·兼容HDMI1.3及以下版本,EDID版本1.3

HDMI(TYPE A)

1

·最大支持分辨率为1920×1200@60Hz,向下兼容

·兼容HDMI1.3及以下版本,EDID版本1.3

VGA (HD-15)

2

·最大支持分辨率为)1920×1200@60Hz ,向下兼容

.信号电平:R、G、B、Hsync、Vsync:0 to1Vpp±3dB  (0.7V Video+0.3v Sync ) 75Ω;black level:300mV Sync-tip:0V

复合视频(BNC)

2

·NTSC/PAL自适应

信号电平:1Vpp±3db  (0.7V Video+0.3v Sync ) 75Ω

 1/8" TRS音频

4

2.0Vp-p / 10 KΩ

输出信号

类型

数量



DVI-D(24+1)

2

·最大支持分辨率为2048×1200@60Hz,1880×1300@60Hz,1700×1400@60Hz,1536×1536@60Hz向下兼容

·支持拼接输出,双口拼接最大分辨率可达2560×1536/3840×1200@60Hz

·兼容HDMI1.3及以下版本

DVI Loop(24+1)

1

·支持多机级联,信号同步环出给下一级设备;

·兼容HDMI1.3及以下版本

 1/4" TRS音频

1

2.0Vp-p / 10 KΩ

控制接口

类型

数量



RS232(RJ 11)

1

.波特率115200,随机附送RJ 11转RS232连接线

USB(TYPEB方形)

1

.版本:USB2.0,需安装随机的控制驱动

特色功能

拼接输出

·双口拼接最大分辨率可达2560×1536@60Hz/3840×1200@60H

自定义分辨率

复制模式下可自定义分辨率,纵向最大1920,横向最大3840

多机级联

支持多机级联拼接,实现超宽/高的拼接显示

全屏监测输出

·可在本地监视器上全屏同步监测主输出(大屏幕)的图像

淡入淡出切换

·所有通道信号均支持淡入淡出切换

局部/全局切换

·可将输入信号的任意区域进行截取显示,并可一键完成局部/全局画面的切换

Super Resolution

放大技术

·画面大小自由缩放

·有效保留图像细节,减轻画面放大多倍后产生的失焦现象

双画面显示

·可实现画中画(PIP)、画面并列(PBP)、画外画功能(POP)

·每个画面均可自由缩放、摆放,画面之间可相互叠加

一键黑屏

·一键输出黑屏信号,常用于演艺活动当中

计划任务

·通过KYSTR管理软件,用户可设定定时操作,完成自动化管理

使用记录调取

·支持调取使用记录的功能,随时随地轻松了解机器使用情况

工程锁

·可设置工作时间。到达预约时间后,需要输入解锁密码才可使用。

其他

上位机控制方式

RS232

尺寸(mm)

66(高)×483(长)×326(深)

重量(Kg)

3.5

输入电源

100-240VAC,47-63Hz,≤2A

工作环境

温度0-40℃;湿度0-95%

保修期

2年免费维修,终身维护
