Features:

01

8×HUB320 interface 32 groups of data

Stable hardware

Unique color reproduction technology

Unique arbitrary frequency doubling technology

Grayscale accuracy

Point by point correction technology

Convenient navigation settings

One-click repair function





8×HUB320 interface 32 groups of data

02

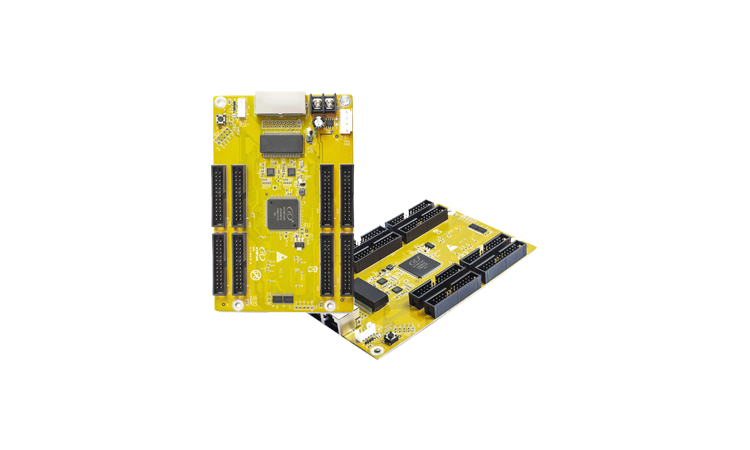

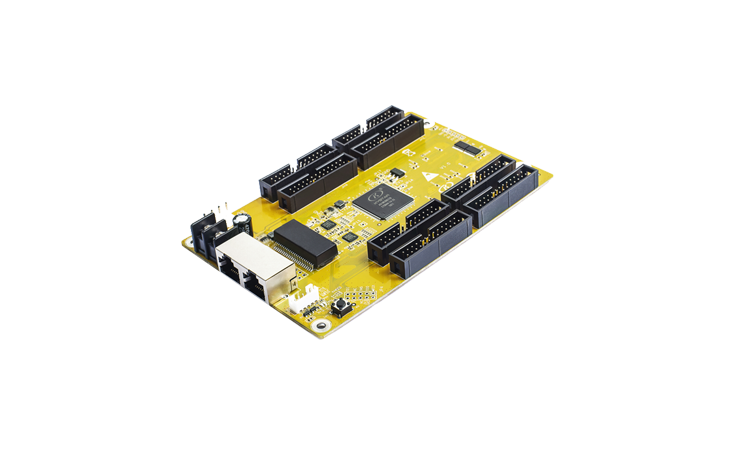

G628 receiving card single card 8 HUB320 standard interfaces, output 32 sets of RGB data, the maximum load is 256*1024 pixels.





Stable hardware

03
G628 not only selects high-quality components, all connectors are high-standard gold-plated parts, and supportive designs such as power protection and upgrade power-off protection are added to ensure the true gold quality of the hardware.
Moreover, G628 also undergoes strict high and low temperature and pulse group testing before leaving the factory to ensure that the product is in the most stable state.





Color reproduction technology

04
G628 supports Kystar Retina Color Rendition (KRCR) color reproduction technology, which solves the problem of reddish display on the industry LED display and presents more realistic colors.





Arbitrary frequency doubling technology

05
G628 supports any frequency doubling unique  kystar technology, which can adjust and control the frequency doubling to match the working frequency of the camera equipment, effectively eliminating the line drawing.





Grayscale accuracy

06
The G628 receiving card has precise grayscale control capabilities, which can achieve first-level graying and step-by-step change to complete the effect of low brightness and high gray.





LED point-by-point correction technology

07
G628 supports bright chromaticity point-by-point correction technology, which can correct the difference in bright chromaticity existing between each light-emitting pixel, so that the LED display shows the best display effect.

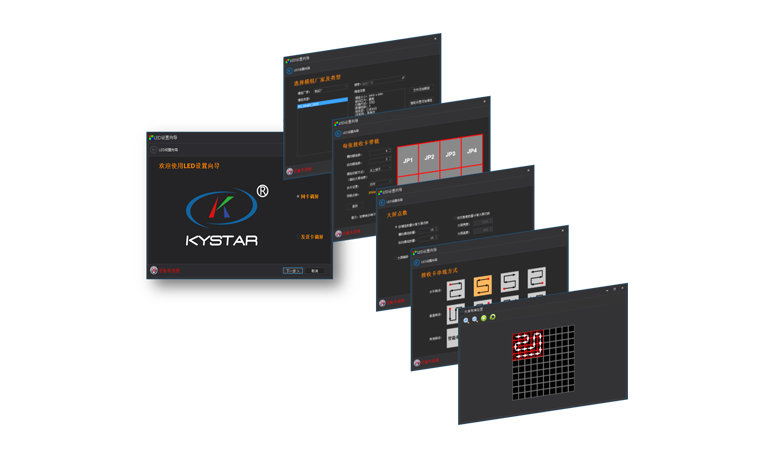

Easy navigation settings

08
Kystar control system software supports navigation settings, simplifying and simplifying, step by step guidance, meticulous attention, making control system debugging easier and faster!

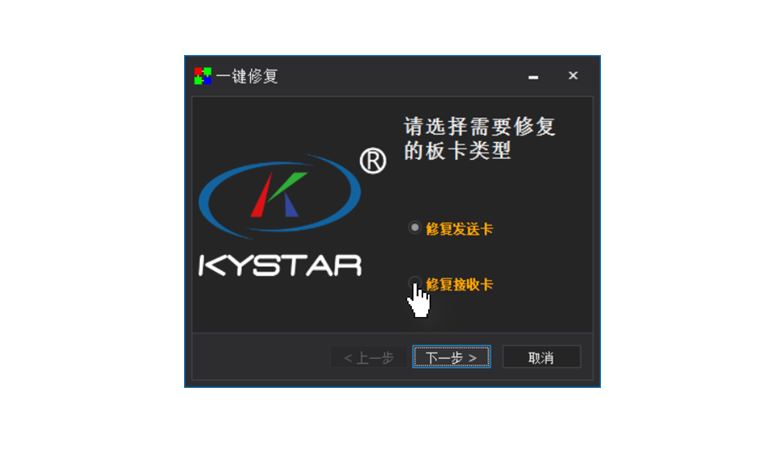

One-click repair function

09
G628 receiving card supports one-key repair function. If a receiving card in the display system is damaged, you only need to replace the receiving card and then use the one-key repair function.





  • 并行数据组数:32组
  • 建议带载:256*512
