Six-channel Video Signal Input

01

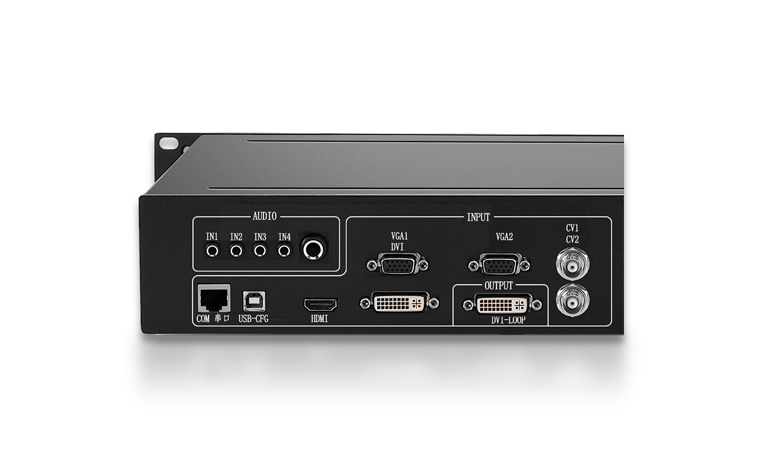

LS4Pro supports six-channel HD video signal input, including DVI×1, HDMI×1, VGA×1, CVBS×2.

At the same time ,LS4Pro support four audio inputs and one audio output .It supports video and audio synchronous switching.





Four network port with 2.42 million pixels

02

LS4Pro is equipped with four Ethernet port outputs, the maximum resolution is up to 2.42 million pixels. The maximum horizontal resolution is 3840 pixels , and maximum vertical resolution is 1920 pixels .







Seamless Switching With Fade-in and Fade-out

03
LS4Pro supports fade-in and fade-out signal switching, without blank screen during the process.





Configure Screen Without Computer

04
LS4Pro can store the project file information in advance. Users can complete the cabinet mapping of the LED screen according to the guidance through the navigation menu without a computer.









Date-read-back and Easy Recovery

05

With the data-read-back function, users can quickly get the correct configuration parameters from the receiving card when replacing the controller.

With the easy recovery function, when the user changes the receiving card, LS4Pro can resend the configuration which stored in the device , so as to complete the system recovery without reconfiguring the parameters.







Multi-machine Cascade Splicing

06

LS4Pro supports frame synchronization technology, multiple machines can work together by using DVI-Loop interface and realize  seamless splicing to control high resolution screens.
















Two Windows Display

07
LS4Pro supports dual-window display. Two signals of the same one or different ones can be arranged arbitrarily on the screen to achieve display effects such as split screen, screen overlay, etc.
