8-port 2-in-1

01
The single machine has 8 network ports, with a single network port carrying 650000 pixels. The maximum carrying capacity of the entire machine is 5.2 million pixels, with a width of up to 8000 pixels and a height of up to 4000 pixels.

Configuration readback and retransmission

02

Has a convenient offline data recovery function. Using the read-back configuration function, the user can quickly read the correct configuration parameters from the receiving card when replacing the controller. Using the configuration resending function, when the user replaces the receiving card, the user can resend the configuration with one click to complete the system repair without reconfiguring the parameters.





Supports multiple digital signal interfaces

03
Supports multiple digital signal interfaces, including 2-way HDMI1.3 and 2-way DVI-D input sources.

3 screen arbitrary layout

04
Supports 3-screen display, with arbitrary layout of screen positions.

Input signal hot backup

05
Any signal source can be designated as the backup of the current signal,When the signal fails, the backup signal is automatically switched seamlessly.

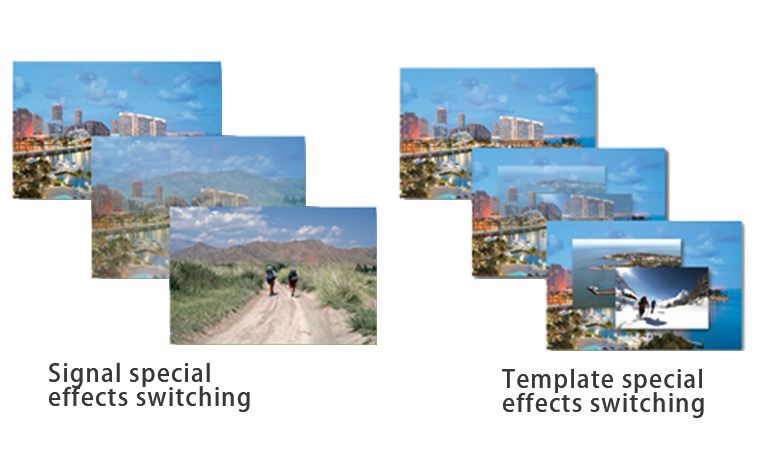

Seamless special effects switching

06
Whether it is the switching of a single signal or the switching of the entire scene template, KLS8 can achieve seamless transition, and there will be no black screen, flicker, delay, and other phenomena during the switching process; And KLS8 has over ten switching special effects for users to choose from, which can adapt to different usage environments.

Kystar HDR Enhancement

07
KLS8 supports Kystar HDR Enhancement (K-HDR) technology, which can perform real-time dynamic optimization according to the image content, widen the dynamic range of the image, enable ordinary SDR images to obtain HDR display effects, and solve the less painful points of HDR video sources in the industry. Bring a stunning visual experience.

Hardware screen adjustment without computer

08
The cabinet file information can be pre-stored. When the user assembles and debugs the cabinet on site, he only needs to navigate through the navigation menu to quickly complete the display connection and debugging according to the guidance.
