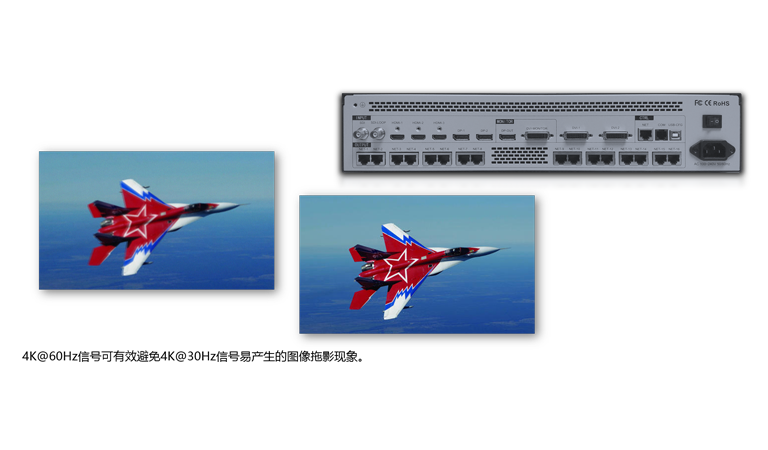

Kystar HDR Enhancement Image enhancement
01•LS16Pro supports Kystar HDR Enhancement (K-HDR) technology, which can perform real-time dynamic optimization according to the image content, widen the dynamic range of the image, enable ordinary SDR images to obtain HDR display effects, and solve the less painful points of HDR video sources in the industry. Bring a stunning visual experience.

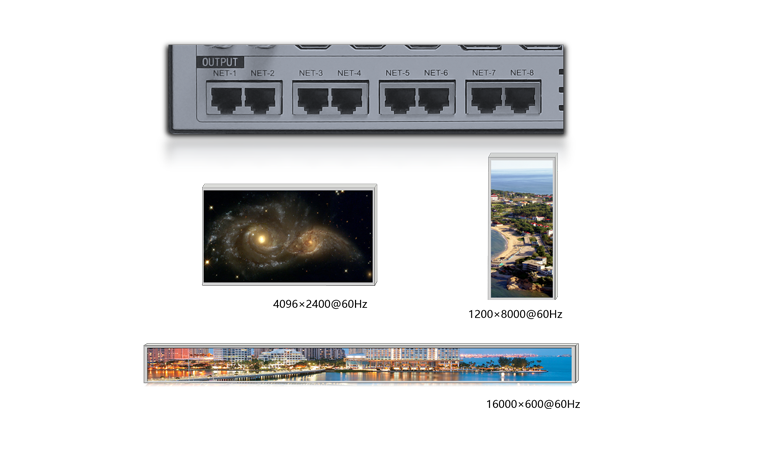

Sixteen network port two in one
02•9.6 million pixel stitching output
•The LS16Pro is equipped with 16 network port outputs, supporting a maximum of 9.6 million pixel loading, a maximum width of 16000 pixels, and a maximum of 8000 pixels.
•The LED display can be driven directly without an external sending controller.
8 digital signal inputs
03
The LS16Pro supports a total of 8 digital signal inputs: DP×2, DVI×2, HDMI×3, SDI*1, and one of the DP signals supports 4K×2K@60Hz or 8K×1K@60Hz ultra high definition resolution

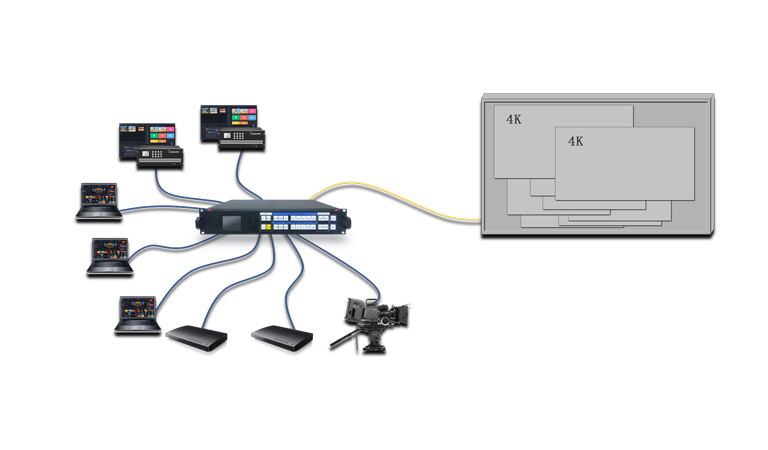

Eight-screen arbitrary layout
04•LS16Pro allows up to 8 signal screens to be displayed. All input signals can be simultaneously on-screen.
Special effects
05•Chroma key cutout and transparency adjustment
•All layers of LS16pro can realize chroma key cutout function, and support arbitrary transparency adjustment to realize various creative displays.

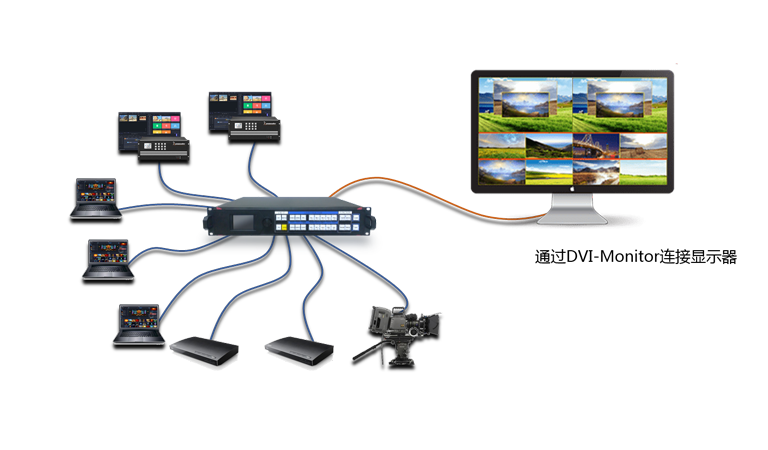

Input preview and output monitoring
06•Complete input and output monitoring on one display
•Connected to the monitor through the DVI-Monitor output port, you can preview all input signals and monitor the output signal screen at the same time.

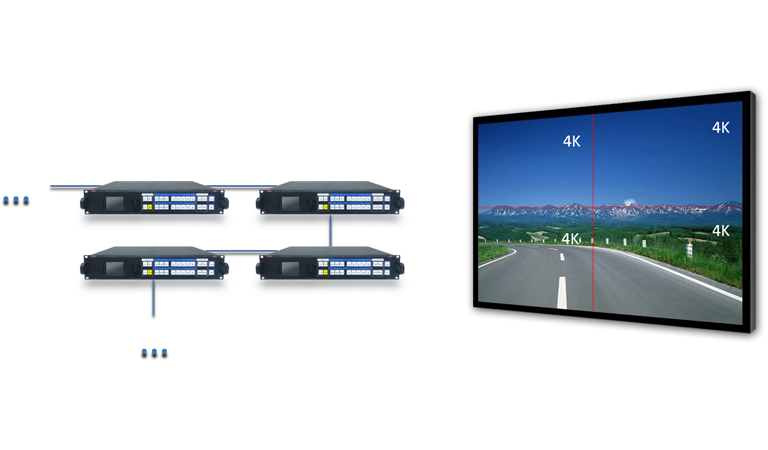

Multi-machine cascade to complete large loading
07•Frame synchronization technology realizes infinite cascade
•LS16pro supports frame synchronization technology, which can be cascaded through DP-Loop interface to achieve seamless splicing of large screens.

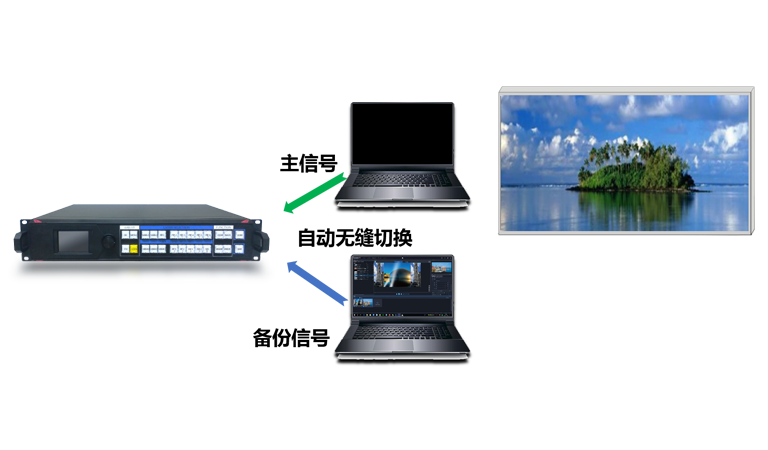

Input signal hot backup
08•Designated backup signal seamless switching
•LS16pro can designate any signal as the backup of the current signal. When the signal fails, the backup signal automatically switches seamlessly.
