GS061

01

Product application

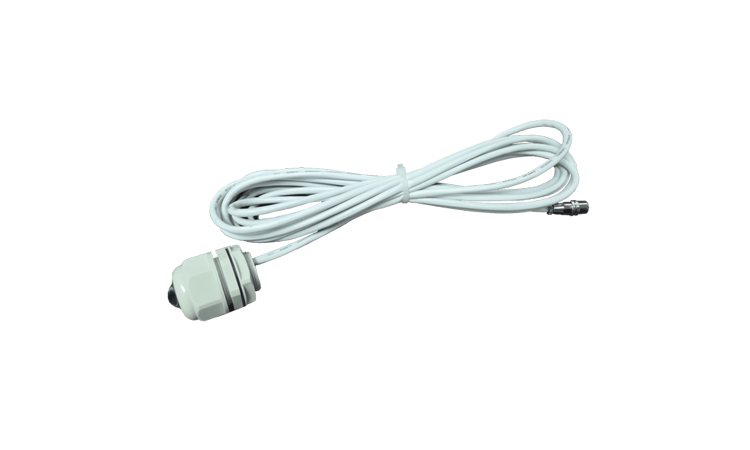

The light probe can be used to monitor the environmental brightness, and automatically adjust the display brightness according to the environmental brightness value and the set brightness adjustment strategy to achieve the purpose of energy saving and environmental protection and ensuring the best viewing effect of the display.

Features

1) Monitor the environment brightness to realize automatic adjustment of the screen brightness.

2) The sending card can be directly connected to adjust the brightness;

3) To connect a multi-function card, you can choose one of the four expansion ports.

4) The standard 5m cable can be extended to 100 meters;

5) No need for external power supply;

6) Three preventions for outdoor use;

7) Comply with EU RoHS standard.







技术参数

项目

参数值

额定电压

DC 3.5V-6V

工作温度

-10- 70

工作湿度

0% - 95%

亮度范围

0~65535Lux

线长

5m
